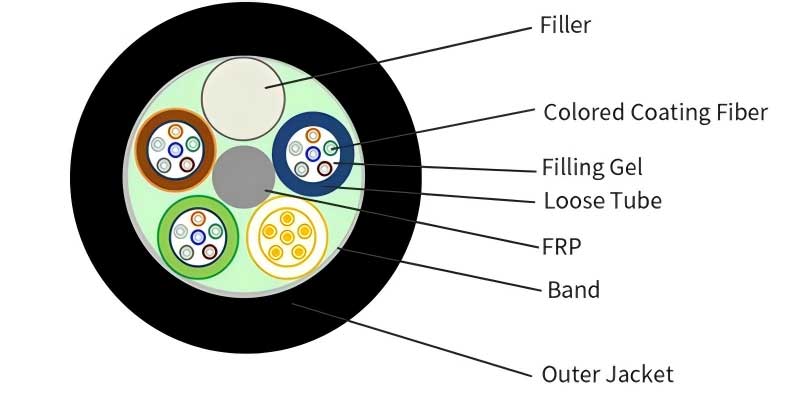

Product Structure Diagram
Product Description
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes(and fillers) are stranded around the non-metallic strength member( FRP) to form the cable core.
Then the cable core is filled with the cable jelly to protect it from water penetration.Finally a PE jacket is extruded.
Product features
Good mechanical and thermal performance.
FRP as the central strength member.
Hydrolysis resistant loose tube.
Tube filling gel ensures critical protection of fiber.
Stranded compact structure eliminating contraction of tubes.
Rugged, durable PE jacket protects against UV radiation,fungus etc.
Non metallic, light in weight, convenient for application with power lines and lightning-prone area.
Application
Duct / Non Self-supporting Aerial Installation.
Technical Specifications
Product Description
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes(and fillers) are stranded around the non-metallic strength member( FRP) to form the cable core.
Then the cable core is filled with the cable jelly to protect it from water penetration.Finally a PE jacket is extruded.
Product features
Good mechanical and thermal performance.
FRP as the central strength member.
Hydrolysis resistant loose tube.
Tube filling gel ensures critical protection of fiber.
Stranded compact structure eliminating contraction of tubes.
Rugged, durable PE jacket protects against UV radiation,fungus etc.
Non metallic, light in weight, convenient for application with power lines and lightning-prone area.
Application
Duct / Non Self-supporting Aerial Installation.
Technical Specifications
| Project | Technical indicators | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter(mm) | 9.8 | 9.8 | 10.7 | 10.7 | 12 | 13.4 | 14.9 | 15.3 | 17.3 |
| Reference weight(Kg/km) | 78 | 78 | 93 | 93 | 117 | 146 | 180 | 185 | 240 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:600/1500 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic:12.5D/25D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃~+70℃ | ||||||||
